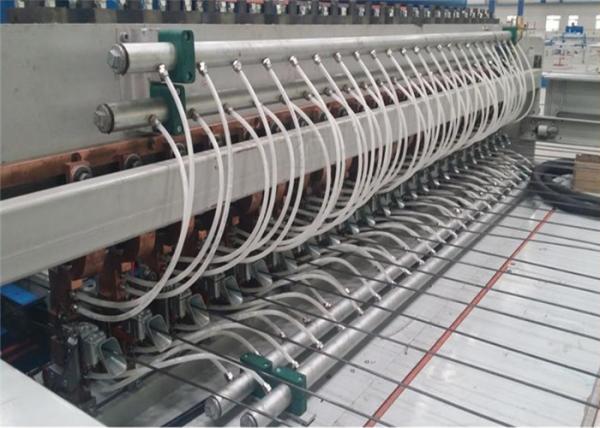

Top Bottom Water Cold Welded Concrete Reinforcement Steel Bar Mesh Machine


description

The welding apertures are adjustable according to you need. What is more,it can change when the machine is working,because it use the PLC and HMI control systemsynchronization CNC technology, welding time and separate welding are controled by PLC digital programInput panel for touch screen or buttons two kinds, which makes the machine more intelligent andrationalization.weldingtransformer,shifting gear can be divided into eight levels, expand the scope of the diameter of the welding wire.It is easy to operate, and the flexibility is high.
.
Features

1. Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.
2. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases the production efficiency.
Specification

Usage

Construction reinforcing mesh, highway cement concrete pavement using mesh reinforcement , bridge deck pavement using mesh reinforcements, sprayed concrete with mesh reinforcement, tunnel lining with steel mesh

Founded in 2010, Anping Chengke Wire Mesh Equipment Co., Ltd. (formerly Anping Changhong Spot Welding Equipment Factory) is located in the famous screen hometown of China - Anping County, Anping County, Co., Ltd. specializes in producing spot welding equipment, welding equipment row, prairie net, screen weaving equipment, screen punching equipment, welding machine network, steel mesh welding equipment and other screen machinery and equipment.We can manufacture complete product design, part working and machine assemble, strong technical strengthen and immediate service can meet customer’s need.
My company has advanced production equipment and technology, improve the quality management system. With excellent quality, reasonable price and excellent service. Our products have been exported to the United States, Mexico, New Zealand, the Middle East, Italy, Southeast Asia and other countries.
Our after-sales service team provides our global customers with comprehensive support and assistance not only in the equipment installation and commissioning, but also throughout the life of the high-quality technical staff to provide on-site service for equipment maintenance. The purpose of our business is to create the value of our business by providing our customers with the products and services that meet their needs, so as to realize the values ​​and dreams of the employees of the business, and ultimately to create greater social benefits.
